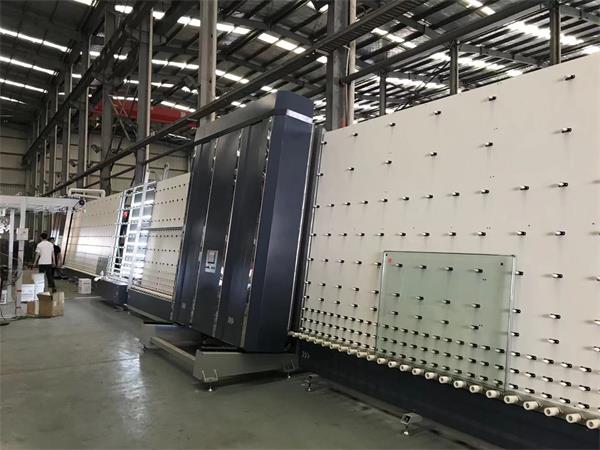

LBP1600中空玻璃生產線全程采用PLC自動控制設備運轉，觸摸屏操作，動作準備可靠，生產效率高，每日單班八小時產量達400塊以上；

The LBP1600 insulated glass production line is fully equipped with PLC automatic control equipment for operation, touch screen operation, reliable action preparation, high production efficiency, and a daily output of over 400 pieces per 8-hour shift;

LBP1600中空玻璃生產線自動變頻調速，實現低速清洗和高速傳送的率應用；

The LBP1600 insulated glass production line has automatic frequency conversion and speed regulation, achieving efficient application of low-speed cleaning and high-speed transmission;

LBP1600中空玻璃生產線采用氣動系統驅動板壓動作，，并且氣懸浮傳送玻璃；

The LBP1600 insulated glass production line adopts a pneumatic system to drive the plate pressure action, which is efficient and energy-saving, and the glass is transported by air suspension;

LBP1600中空玻璃生產線采用兩對毛刷兩道清洗的結構，適合清洗3-12mm的普通、鍍膜、LOW-E玻璃；

The LBP1600 insulated glass production line adopts a structure of two pairs of brushes and two cleaning passes, suitable for cleaning 3-12mm ordinary, coated, LOW-E glass;

備注：清洗時水由水泵從水箱抽出，通過噴淋水管水嘴噴到玻璃表面上，經毛刷清洗玻璃后，再流回水箱，循環使用。漂洗水箱配有帶溫控的水加熱裝置，可自動保持水溫。若水質較差，用戶需配備水處理裝置，水經水處理后進入漂洗水箱，按上述步驟循環使用。（水處理裝置由用戶自備）

Note: During cleaning, water is extracted from the water tank by the water pump and sprayed onto the surface of the glass through the spray pipe nozzle. After cleaning the glass with a brush, it flows back to the water tank and is reused. The rinsing water tank is equipped with a temperature controlled water heating device that can automatically maintain the water temperature. If the water quality is poor, users need to be equipped with a water treatment device. After water treatment, it enters the rinsing water tank and is recycled according to the above steps. (The water treatment device is provided by the user)

LBP1600中空玻璃生產線可連續清洗玻璃，機器自動區分、二塊玻璃，清洗等待時間為零；

The LBP1600 insulated glass production line can continuously clean glass, and the machine automatically distinguishes the first and second pieces of glass, with zero cleaning waiting time;

LBP1600中空玻璃生產線的干燥段采用循環熱風的設計，保證干燥效果的同時，提高了玻璃清洗速度，更降低了噪音；

The drying section of the LBP1600 insulated glass production line adopts a design of circulating hot air, which ensures the drying effect while improving the glass cleaning speed and reducing noise;

中空玻璃生產線合片平壓機可移動的前壓片內采用國產吸盤裝置（用戶可選裝進口吸盤裝置），根據不同尺寸玻璃 合理分配吸盤工作區域，基本為單吸盤工作分配保障吸盤有效氣壓，盡可能避免出現玻璃滑落現象。 合片平壓時采用氣動系統驅動，運動采用四點同步齒輪齒條，充分保證兩個板面平行壓合。對于加工不同尺寸的中空玻璃設有調壓功能，保壓時間也可根據玻璃尺寸大小進行調整。

The movable front pressing machine of the hollow glass production line adopts a domestic suction cup device (users can choose to install imported suction cup devices), and the suction cup working area is reasonably allocated according to different sizes of glass. The basic single suction cup work allocation ensures the effective air pressure of the suction cup, and avoids the phenomenon of glass sliding as much as possible. During the flat pressing process, a pneumatic system is used for driving, and a four point synchronous gear rack is used for movement, fully ensuring the parallel pressing of the two plate surfaces. There is a pressure regulating function for processing hollow glass of different sizes, and the holding time can also be adjusted according to the size of the glass.

備注：中空玻璃生產線的內合段采用大張開式，檢修便捷，操作更人性化。

Note: The inner sealing section of the insulated glass production line adopts a large opening type, which is convenient for maintenance and more user-friendly for operation.

中空玻璃生產線定位準確，無錯位現象。平壓段內采用知名真空發生器，吸力大，吸盤真空度在0.8bar以上，分區域自動吸合玻璃，充分保證玻璃吸合后不會(huì )下滑。

The positioning of the insulated glass production line is accurate and there is no misalignment phenomenon. A well-known brand vacuum generator is used in the flat pressure section, with a high suction force and a suction cup vacuum degree of above 0.8 bar. The glass is automatically sucked in by zones, fully ensuring that it will not slide after being sucked in.

LBP1600中空玻璃生產線可生產兩層、三層的中空玻璃。

The LBP1600 insulated glass production line can produce two-layer and three-layer insulated glass.
