功能特點:
Features:

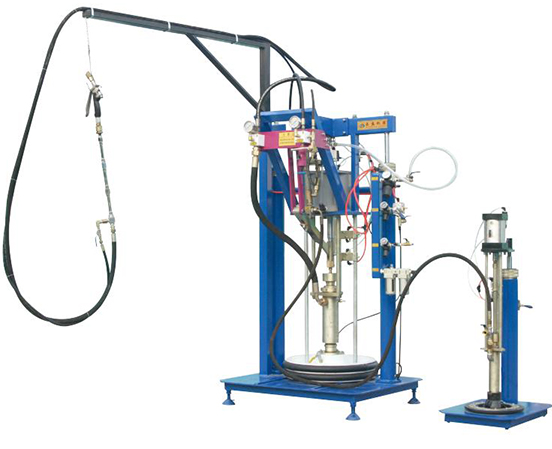

氣動雙組份打膠機是目前技術較好的中空玻璃密封膠打膠機。泵組件a和泵組件B分別由氣動系統驅動，采用無觸點電氣控制系統控制。換向方向靈敏可靠。其獨特的方便可調配比機構，很大限度保證了雙組份膠的嚴格配比要求，出膠連續均勻，上膠效果好，生產效率高。
Pneumatic two-component sealant applicator is a kind of insulating glass sealant applicator with better technology at home and abroad. Pump assembly a and pump assembly B are driven by pneumatic system respectively and controlled by contactless electrical control system. The reversing direction is sensitive and reliable. Its unique convenient and adjustable proportioning mechanism greatly ensures the strict proportioning requirements of the two-component glue, continuous and uniform glue output, good gluing effect and high production efficiency.
雙組份打膠機的操作
Operation of two-component sealant applicator
1. 連接氣源:
1. Connect the air source:
接通電源，調節減壓閥0.4 ~ 0.6MPa，檢查系統有無漏氣。然后試運行以下動作:(1)泵舉升(2)a泵充氣(3)B泵舉升(4)B泵充注。注:升降油缸升降時，若兩個油缸不同步，請降原點重新操作。
Connect the power supply, adjust the pressure reducing valve to 0.4~0.6MPa, and check the system for air leakage. Then try the following actions: (1) pump lifting (2) a pump charging (3) B pump lifting (4) B pump charging. Note: When lifting the lifting cylinder, if the two cylinders are not synchronized, please lower to the original point and operate again.

2. 將部件a、B的膠筒放到位，并與橡膠泵a、B的軸線對齊。
2. Place the rubber cylinders of parts a and B in place and align them with the axes of rubber pumps a and B.
以A組分為例
Take component A as an example
1)操作手動轉閥將a泵舉升到較高的氣動雙組份點膠機，觀察舉升過程中管路拉伸是否過緊。
1) Operate the manual rotary valve to lift pump a to a higher pneumatic two-component dispenser, and observe whether the pipeline tension is too tight during lifting.
2)將膠桶置于a泵壓板下，打開雙組份膠桶附件，將膠袋從桶內翻出，取出膠面塑料片。
2) Place the plastic bucket under the pressure plate of pump a, open the two-component plastic bucket accessory, turn the plastic bag out of the bucket, and take out the plastic sheet on the plastic surface.
3)使泵的壓板緩慢下降。壓力板進入筒體時，應與筒體開口對準。打開壓板的排氣口，直壓板與橡膠表面接觸。當壓板內氣體完全排出，排氣口有少量膠水溢出時，排氣閥可關閉(升降開關仍處于下壓狀態)
3) Slowly lower the pressure plate of the pump. When the pressure plate enters the cylinder, it should be aligned with the cylinder opening. Open the air outlet of the pressure plate until the pressure plate contacts the rubber surface. When the gas in the pressure plate is completely discharged and a small amount of glue overflows from the exhaust port, the exhaust valve can be closed (the lifting switch is still in the downward pressure state)
4)開機試膠:打開主泵氣源開關，按膠槍開關，直泵a內空氣完全排出，膠口不斷排出。
4) Start up and test the glue: turn on the air source switch of the main pump and press the glue gun switch until the air in pump a is completely discharged and the glue mouth is continuously discharged.
用同樣的方法操作泵B。
Operate pump B in the same way.
4. 上膠操作:
4. Gluing operation:
1)松開比例桿上比例泵的鎖緊螺桿，將比例泵的內外調節到所需比例。只有當膠水a(chǎn)和膠水B的比例達到正常值時，才能進行以下操作。
1) Loosen the locking screw of the proportional pump on the proportional rod, and adjust the inside and outside of the proportional pump to the required proportion. The following operations can only be carried out when the ratio of glue a and glue B reaches the normal value.
2) a和B泵設置選擇旋鈕,使噴膠槍的退出與中間縫的兩塊玻璃,打開開關噴膠槍,把膠槍順利在適當的速度填充的雙組分膠玻璃罐。涂膠結束時關閉膠槍。
2) Set the selection knob for pumps a and B to make the exit of the glue gun and the two pieces of glass in the middle seam. Turn on the glue gun and fill the two-component glue glass tank with the glue gun at a proper speed. Close the glue gun at the end of gluing.
5. 更換膠筒:
5. Replace the rubber cartridge:
1)當桶內膠水用完時，應立即關閉a、B開關，停止輕敲。
1) When the glue in the bucket is used up, immediately turn off the a and B switches and stop tapping.
2)打開a(或b)橡膠泵的充氣開關，將a(或b)橡膠泵的升降機構選為上升位置，按下旋鈕，使壓力板緩慢升降。此時要注意的是膠筒盡量不要離開底盤，待壓板與膠筒完全分離后，關閉a(或b)膠泵的充氣開關。3)取出空桶，將新的膠桶放在工作位置，重復第3、4、4項的操作。
2) Turn on the inflation switch of a (or b) rubber pump, select the lifting mechanism of a (or b) rubber pump as the rising position, and press the knob to make the pressure plate rise and fall slowly. At this time, it should be noted that the rubber cylinder should not leave the chassis as far as possible. After the pressing plate is completely separated from the rubber cylinder, turn off the inflation switch of a (or b) rubber pump. 3) Take out the empty bucket, put the new rubber bucket in the working position, and repeat the operations of items 3, 4 and 4.
1. 膠槍:由于雙組份膠水是由兩種膠水混合而成，其凝固速度與環境溫度及a、B膠水的配比有關，混合后的膠水在20分鐘內反應固化。因此，設備在正常上膠時，如果20分鐘內未使用，就要把混好的膠洗掉，以免堵塞混膠機和膠槍。具體操作:關閉B泵，打開B回膠開關，再打開膠槍?zhuān)钡侥z條變白為止。
1. Glue gun: since the two-component glue is made of two kinds of glue, its solidification speed is related to the ambient temperature and the ratio of a and B glue. The mixed glue will react and solidify within 20 minutes. Therefore, if the equipment is not used within 20 minutes during normal gluing, the mixed glue should be washed away to avoid blocking the glue mixer and glue gun. Specific operation: turn off pump B, turn on the glue return switch of B, and then turn on the glue gun until the glue strip turns white.
槍清洗:
Gun cleaning:
用水燒制混合器，直取出混合器芯;黑色把手上有個結?；旌掀髋c槍頭之間的轉動部分不得被燒;不要燒槍頭。你可以用電線穿過去
Burn the mixer with water until the mixer core is taken out; There is a knot on the black handle. The rotating part between the mixer and the gun head shall not be burnt; Don't burn the gun head. You can wire it through
