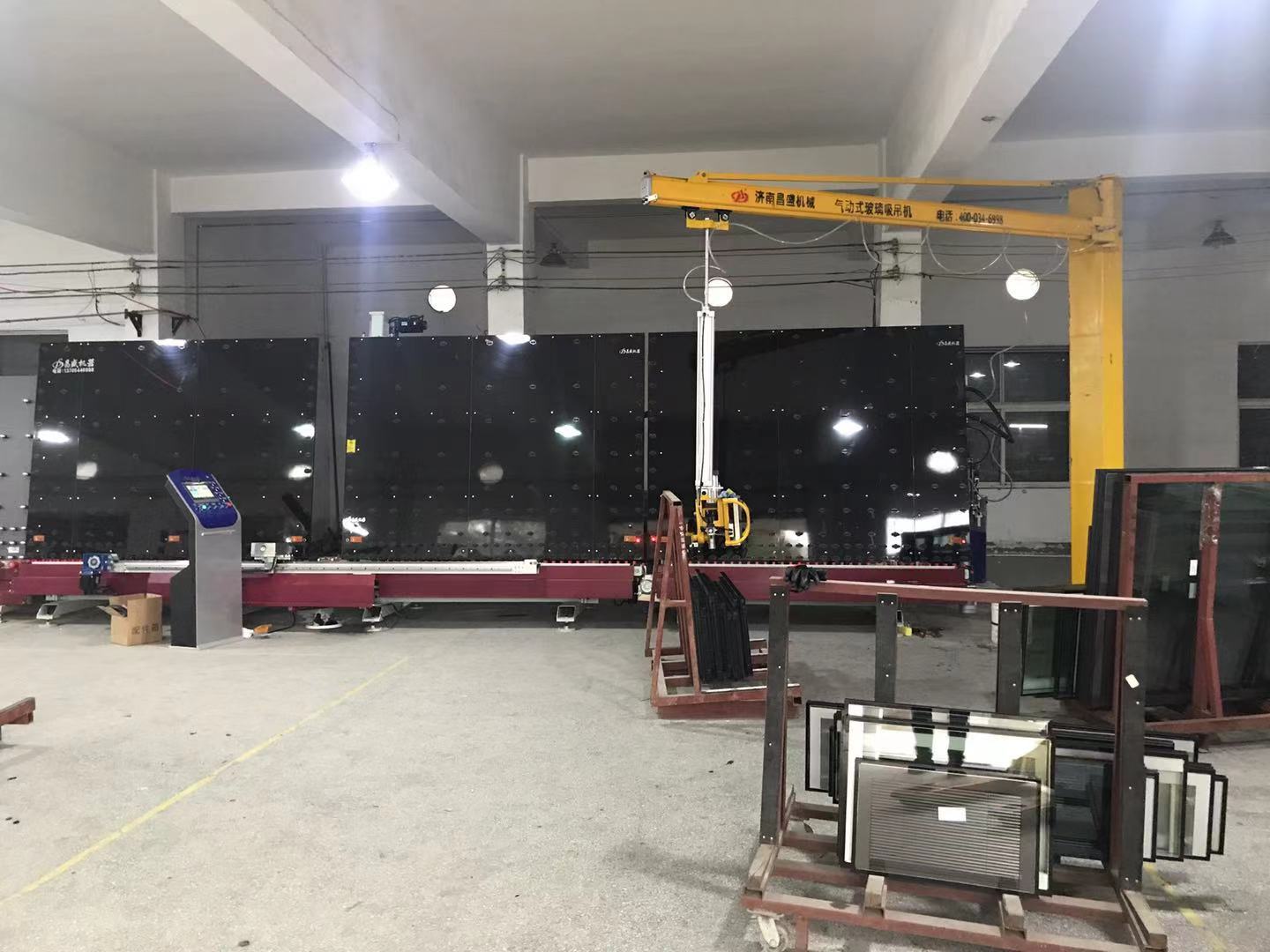

At present, the insulating Glass production production line is mainly divided into four sections: feeding section, cleaning and drying section, inspection section and combining section. These four stages place the glass in the same way. Compact structure, improve efficiency, and make hollow Glass production production more simple and convenient.

清洗箱：清洗箱整體是不銹鋼材料來鍛造的，更加的堅固與整潔。傳送輥也是由耐酸的堿性橡膠輥制作。中間還設計有機玻璃視窗方便人們可以隨時觀察玻璃的清洗情況。

Cleaning box: The entire cleaning box is made of stainless steel material, which is more sturdy and tidy. The conveyor roller is also made of acid resistant alkaline rubber rollers. An organic glass window is also designed in the middle for people to observe the cleaning status of the glass at any time.

入料段、清洗干燥段：入料段、清洗干燥段采用手動無級調速電機傳動，玻璃平穩地運行。干燥段采用大風力傾斜風刀能使玻璃表面得以干燥。讓整個工序迅速而又干凈利落的進行中。

Feeding section, cleaning and drying section: The feeding section and cleaning and drying section are driven by a manual stepless speed control motor, ensuring smooth operation of the glass. The drying section uses a high wind force inclined blade to dry the glass surface. Make the entire process proceed quickly and cleanly.

檢查段：檢查段設有燈管，能清晰地檢查玻璃的清洗質量

Inspection section: The inspection section is equipped with a light tube, which can clearly check the cleaning quality of the glass

合片段：合片段具有玻璃定位及鋁框定位裝置，能完成玻璃定位、鋁框定位安放功能。玻璃由傳送膠輥承托及傳送，傳送輥由電機（輥壓段電機）經過變頻調速器通過鏈輪帶動，玻璃由清洗干燥段低速進入本段，經檢查合格后加速運行下一工作段，提高工作效率；由變頻調速器控制本段調速電機的運行速度，光電開關控制玻璃進入下一工作段。

Combination segment: The combination segment has glass positioning and aluminum frame positioning devices, which can complete the functions of glass positioning and aluminum frame positioning placement. The glass is supported and transported by a conveyor roller, which is driven by a motor (roller pressing section motor) through a frequency converter and a sprocket. The glass enters this section at low speed from the cleaning and drying section, and after passing the inspection, accelerates to the next working section to improve work efficiency; The operating speed of the speed regulating motor in this section is controlled by a frequency converter, and the photoelectric switch controls the glass to enter the next working section.

中空玻璃生產線的清洗水路系統為循環系統，其水箱配有恒溫水加熱裝置，水溫可自動保持在合理的范圍。

The cleaning water circuit system of the hollow Glass production production line is a circulating system. Its water tank is equipped with a constant temperature Water heating device, and the water temperature can be automatically maintained within a reasonable range.

水由水泵從水箱抽出，經噴淋水管?chē)姷讲ＡП砻嫔?，清洗玻璃后流回水箱，循環使用。若水質較差，需配備水處理裝置（用戶自備），水經處理后進入水箱，按上述步驟循環使用。

Water is pumped out of the water tank by a water pump and sprayed onto the surface of the glass through a spray pipe. After cleaning the glass, it flows back to the water tank for recycling. If the water quality is poor, a water treatment device (provided by the user) needs to be equipped. After the water is treated, it enters the water tank and is recycled according to the above steps.

風路系統：由風機通過一對傾斜風刀，吹干玻璃。

Air duct system: The glass is blown dry by a fan through a pair of inclined blades.
